ADW600 multi-circuit power metering module is mainly used to measure the three-phase active power of low-voltage networks. It has the advantages of small size, easy installation, and rich functions. The product adopts a modular design, including voltage module, current module, switch module, temperature measurement and leakage module, etc. The modules are connected by network cables and can support multi-circuit splicing. It is suitable for multi-circuit metering scenarios on the low-voltage side, especially for power transformation needs.
1) Independent metering of multiple circuits: the electricity of multiple different circuits can be measured separately, and the electricity consumption of each circuit can be counted;
2) Centralized monitoring: the electrical parameter information of multiple circuits is centrally displayed and managed, reducing the installation space and facilitating personnel maintenance and unified management;
3) Flexible configuration: it can be flexibly configured according to actual electricity consumption, adapting to different bribery quantities and electricity load requirements;
4) Data remote transmission: supports data remote transmission function (4G/WF/Ethernet), which can upload data to the background management system in real time for real-time monitoring
|
Model |
Function |
|
ADW600-M |
Data acquisition and remote transmission (4G/Ethernet/WIFI) |
|
ADW600-U |
Voltage measurement and sampling |
|
ADW600-I |
Active energy measurement (forward and reverse), |
|
Four-quadrant reactive energy |
|
|
Voltage, current, power factor, frequency, active power, reactive power, apparent power |
|
|
Total harmonic content, sub-harmonic content (2nd to 31st order) |
|
|
ADW600-K |
Active pulse output |
|
ADW600-TL |
4DI, 2DO |
| pecifications: Model |
Overall dimensions (mm) |
Perforation size (mm) |
Tolerance (mm) |
|||||
|
W |
H |
D |
M |
N |
Φ1 |
Φ2 |
||
|
D10：AKH-0.66/K- ∅10N |
27 |
44 |
32 |
25 |
36 |
10 |
9 |
±1 |
|
D16：AKH-0.66/K-∅16N |
31 |
50 |
36 |
27 |
42 |
16 |
17 |
|
|
D24：AKH-0.66/K-∅24N |
39 |
71 |
46 |
36 |
52 |
24 |
23.5 |
|
|
D36：AKH-0.66/K-∅36N |
42.5 |
82 |
58 |
40 |
56 |
33.5 |
35 |
|

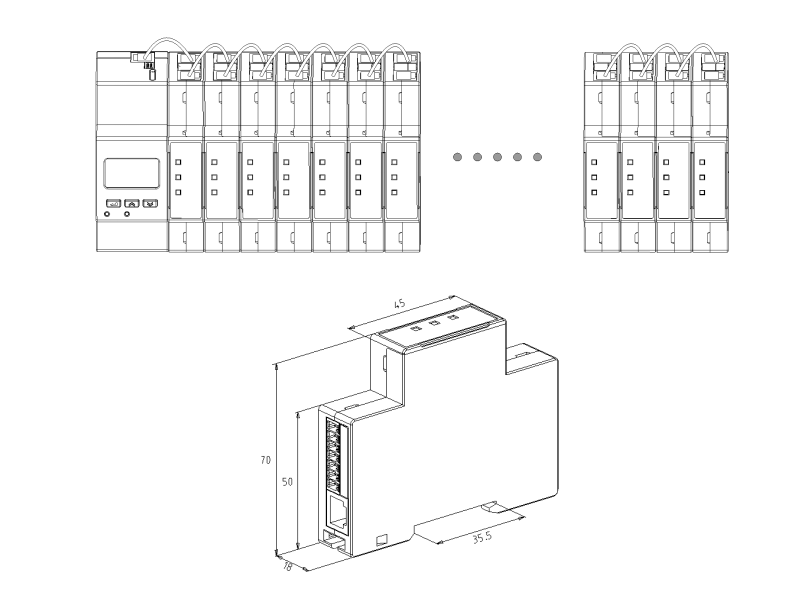

1. The ADW600-M gateway (-4G/-CE/-WF) on the far left of the ADW600 rendering in Figure 1 needs to be ordered separately.
2. When connecting network cables between different modules, please note that BUS-IN is the incoming interface and BUS-OUT is the outgoing interface. Start with ADW600-M or the power module and connect them in sequence. Do not connect them in reverse.
