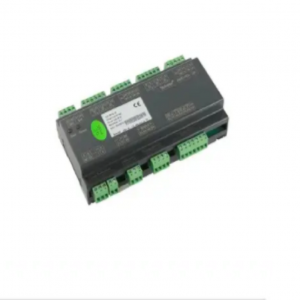

Multi-loop Power Meter for IDC (Internet Data Center) ,AMC16Z-ZA

● Designed specifically for the power supply management of server in the data center

● A+B independent 2 channels three-phase inlet

● U, I, P, Q, S, PF, kWh, kvarh

● 2nd-63rd Harmonic

Send email to us Download The Manual

Product Detail

PARAMETERS

Download

AMC16Z-ZA Manual

Overview

AMC16Z-ZA AC multi channel energy meter is independently designed to meet the needs of the increasingly high precision power distribution management requirements of the data center. It is suitable for carious all-round inrelligent monitoring of terminal distribution equipment.

Parameters

*A+B independent 2 circuits three-phase main line bus bar’s voltage, current, active power,reactive power, apparent power, power factor, active power, reactive power, zero ground voltage,midline current, 2-63 harmonics of voltage and current
*6 passive switching input
*2 switching output
*1 RS485 communication

*Installation:
DIN rail 35mm

* Dimension(L*W*H)：
180*94.3*45mm

wiring

Network

Technical Paramete		Value
Distribution System		AC
Measurement of electrical parameters		A+B independent 2 channels three-phase inlet U,I,P,Q,S,PF,EP,EQ,UN to PG, neutral curent 2-63rd harmonic of voltage and current 6 channels passive switch input 2 channels switch output RS485(Modbus-RTU) communication.
Current	Nominal	220VAC
	Range	±20%
	Overload	2 times lasting 1 second(instantaneous)
	CT	XXA/5A
	Range	0～120%
	Overload	1.2 times(continuous),10 times lasting 1 second(instantaneous)
Input frequency		45～65Hz
Accuracy		Class 0.2(U/l) Class 0.5(P/EP)Class 1(Q/EQ)
Insulation resistance		100MQ
Switch output		2 channels(3A 250VAC/3A30VDC)
Switch input		6 channels
Communication		RS485(Modbus-RTU)
Installation		DIN 35mm
