This article analyzes the hazards and causes of neutral line overload current. Combining the technical principles and practical application cases of the Acrel Neutral Line Security Protector (ANSNP), this article systematically explains the product’s core value in managing abnormal neutral line current and reducing the risk of electrical fires. Research shows that the ANSNP series, through real-time monitoring, harmonic compensation, and intelligent protection mechanisms, can increase the compensation rate for the third harmonic in neutral line current to over 97%, significantly reducing line temperatures and providing efficient and reliable power safety for industrial and commercial applications.
Keywords: NeturalLineCurrent; HarmonicControl; ElectricalFire; Acrel Netural Line Security Protector; ANSNP
1. Excessive neutral current: the overlooked culprit of electrical fires
In low-voltage power distribution systems, the neutral conductor (N conductor) plays a critical role in balancing the three-phase current. However, with the widespread use of nonlinear loads such as LED lighting, inverters, and UPS power supplies, the problem of neutral conductor current overload has become increasingly prominent. Research data shows that when the third harmonic current generated by nonlinear loads is superimposed on the neutral conductor, its amplitude can reach 1.7 times that of the phase line current, causing a sharp increase in line temperature, accelerating insulation aging, and ultimately potentially causing short circuits and fires.
1.1 Three transmission pathways of fire risk
Insulation aging: When long-term overload causes the temperature of the neutral wire insulation layer to exceed 60°C, the aging speed is accelerated by 3-5 times, and the carbonization of the insulation layer can easily cause a short circuit.
Equipment damage: The three-phase voltage imbalance has intensified, causing the failure rate of precision instruments (such as medical equipment and servers) to increase by more than 40%.
Protection malfunction: Overcurrent in the neutral line may trigger the residual current protector to trip incorrectly, affecting power supply continuity.
1.2 Typical accident cases

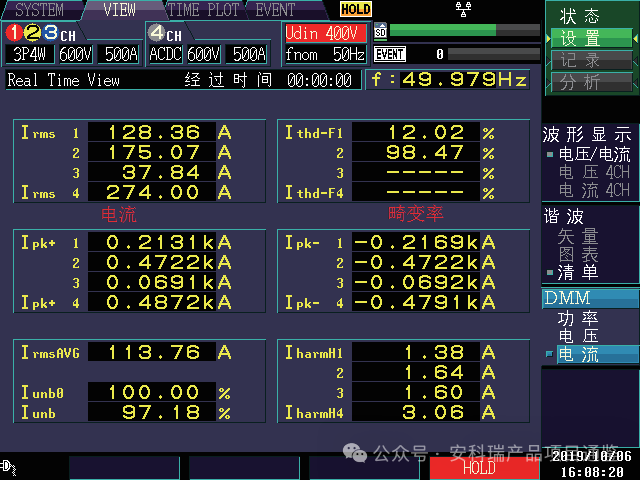

Pictures are for reference only
In 2016, a cinema fire was caused by an overcurrent in the neutral wire of its audio equipment, resulting in direct economic losses exceeding 10 million yuan. In 2019, a three-phase imbalance in the LED screen caused a fire in the distribution room of a Beijing shopping mall, forcing the evacuation of thousands of people. Statistics from the Ministry of Public Security’s Fire Department show that the proportion of electrical fires caused by neutral wire faults has climbed from 18% in 2015 to 29% in 2024, posing a significant threat to public safety.
2. Acrel Central Line Security Products : Triple Protection Mechanism Guards Electrical Safety
To address the problem of abnormal neutral line current, the ANSNP series neutral line security protector developed by Acrel has built the first line of defense for power safety through a full-process management system of “monitoring-compensation-protection”.
2.1 Real-time monitoring and intelligent diagnosis
High-precision sensor: Built-in 0.5-level current transformer can capture the neutral current waveform in real time with an accuracy of ±1%.
Harmonic analysis algorithm: Using DSP digital control system, it can quickly identify the 3rd, 5th and 7th harmonic components, and the THD (total harmonic distortion) monitoring accuracy is ≤2%.
Intelligent early warning system: When the neutral line current is detected to exceed 120% of the rated value, the 7-inch touch screen will immediately issue an audible and visual alarm and push real-time data through the mobile phone app.
2.2 Dynamic Harmonic Compensation Technology
Reverse current injection: This method uses the IGBT power module to generate a compensating current of equal magnitude and opposite direction to the harmonic current and injects it into the neutral line. Measured data shows that after treatment, the third harmonic current dropped from 109.86A to 3.95A, achieving a compensation rate of 97.3%.
Three-level topology: reduces module losses, improves system stability, and keeps IGBT temperature below 75°C when running at full load.
Double N-wire terminal design: When the neutral line current exceeds the phase line current, it automatically switches to dual-wire parallel mode, increasing the shunt capacity by 100%.
2.3 Multi-level protection system
Hardware-level fast disconnection: Built-in high-sensitivity circuit breaker can cut off the fault circuit within 0.1 seconds when the current suddenly changes, and the response speed is 5 times faster than traditional fuses.
Software-level intelligent decision-making: Record fault types (overload, short circuit, phase sequence error) and implement remote diagnosis and operation and maintenance through the AcrelEMS energy efficiency management platform.
Grounding and heat dissipation guarantee: A 4mm² dedicated grounding wire suppresses electromagnetic interference, and the convection air duct design with bottom air inlet and top air outlet ensures stable operation of the equipment at an ambient temperature of 40°C.
3.1 Industrial Production Scenario
After an electronics factory in Anhui province introduced the ANSNP100 protector, the third harmonic in the neutral line current dropped from 125A to 5A, cable temperature dropped from 78°C to 32°C, and the failure rate of production equipment decreased by 65%. This case demonstrates the product’s significant advantages in managing high-harmonic loads such as inverters and welding machines.
3.2 Commercial Complex Scenario
After installing the ANSNP200 protector in a shopping mall in Beijing, the neutral line current dropped from 640A to 37A, the THD dropped from 90.2% to 11.3%, the energy efficiency of the power distribution system increased by 18%, and the service life of equipment such as LED screens was extended through the intelligent voltage stabilization function.
3.3 Data Center Scenario
In a test at a financial data center, the ANSNP series products reduced the 9th harmonic in the neutral line current from 35.66A to 3.3A, effectively solving the UPS power supply harmonic pollution problem and ensuring the stable operation of the server cluster.
4. Technical Upgrade Path for Electricity Safety Management
4.1 Preventive Maintenance Strategy
Regular inspection: It is recommended to use a high-precision power quality analyzer to perform spectrum analysis on the neutral line current every quarter, focusing on the 3N harmonic content.
Cable selection optimization: For systems with harmonic loads exceeding 30%, the cross-sectional area of the neutral line should be consistent with that of the phase line to avoid “a small horse pulling a big cart”.
Energy efficiency audit: Establish equipment health records through the AcrelEMS platform to achieve quantitative evaluation of harmonic control effects.
4.2 Technology Iteration Trends
With the development of the Internet of Things and edge computing technologies, the next generation of neutral line security products will integrate AI algorithms to achieve harmonic prediction and dynamic compensation parameter self-optimization. Acrel has deployed a digital twin-based distribution system simulation platform in some pilot projects, which can provide 72 hours of advance warning of potential neutral line current anomalies.
V. Conclusion
Neutral line current overload is a major cause of electrical fires. Acrel‘s ANSNP series neutral line safety protectors offer a systematic solution to this problem through the synergy of real-time monitoring, harmonic compensation, and intelligent protection. Field data shows that this product can increase the compensation rate for the third harmonic in neutral line current to over 97%, significantly reducing line temperature and fire risks. Against the backdrop of the accelerated advancement of Industry 4.0 and new infrastructure, the promotion and application of such advanced technologies has significant practical significance for building a safe, efficient, and green modern power distribution system.
