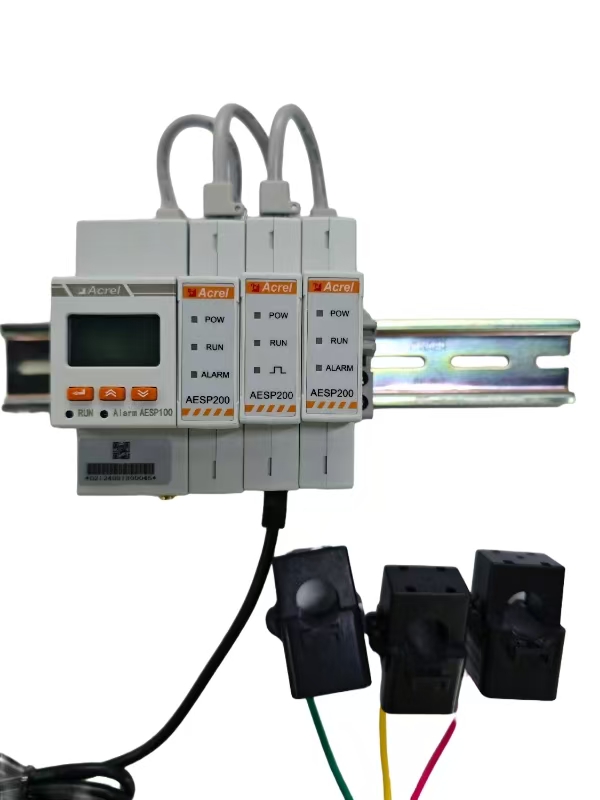

Acrel New Multi Loop Wireless Meter ADW600 with Module Easy Installation and Small Size
ADW600 is mainly used to measure the electric energy of low-voltage power grid, with the advantages of small size, no need for installation, and rich functions. The design includes voltage module, current module, switch module, temperature measurement and leakage module, etc. The modules are connected by network cables and can support multi-circuit splicing. It is suitable for multi-circuit metering scenarios on the low-voltage side, especially for power transformation needs.
Productio Features:
1) Independent metering of multiple circuits: the electricity of multiple different circuits can be measured separately, and the electricity consumption of each circuit can be counted;
2) Centralized monitoring: the electrical parameter information of multiple circuits is centrally displayed and managed, reducing the installation space and facilitating personnel maintenance and unified management;
3) Flexible configuration: it can be flexibly configured according to actual electricity consumption, adapting to different bribery quantities and electricity load requirements;
4) Data remote transmission: supports data remote transmission function (4G/WF/Ethernet), which can upload data to the background management system in real time for real-time monitoring
|
Model |
Function |
|
ADW600-M |
Data acquisition and remote transmission (4G/Ethernet/WIFI) |
|
ADW600-U |
Voltage measurement and sampling |
|
ADW600-I |
Active energy measurement (forward and reverse), |
|
Four-quadrant reactive energy |
|
|
Voltage, current, power factor, frequency, active power, reactive power, apparent power |
|
|
Total harmonic content, sub-harmonic content (2nd to 31st order) |
|
|
ADW600-K |
Active pulse output |
|
ADW600-TL |
4DI, 2DO |
| ADW600-U | Rated voltage | 3×57.7/100V，3×220/380V，3×100V, 3×380V |
| Voltage accuracy | 0.5% | |
| Reference frequency | 45-65Hz | |
| Power consumption | Each phase<0.5VA | |
| ADW600-I | Input current | D10：0.03-0.15(6)A，D16：0.8-2(100)A，D24：3.2-8(400)A，D36：4.8-12(600)A |
| Active energy accuracy | B class | |
| Energy pulse width | 80±20ms | |
| Active pulse constant | D10：6400imp/kWh，D16：400imp/kWh，D24：100imp/kWh，D36：60imp/kWh | |
| Power consumption | Each phase<1VA | |
| ADW600-K | Switching input | 4 passive inputs, built-in DC12V power supply |
| Switching output | 2 passive outputs, capacity AC230V/DC30V, 3A | |
| ADW600-TL | Temperature measurement | 12 temperature measurement, accuracy ±2℃, 12 temperature measurement wires as standard |
| Residual current measurement | 4 residual current measurement, input maximum 1mA, accuracy 1%, residual current transformer needs to be purchased separately |

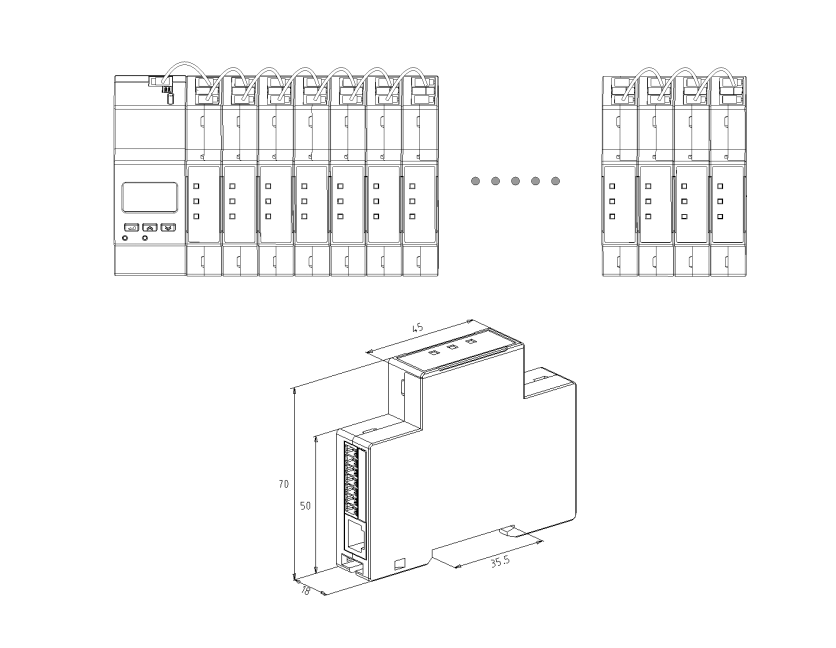

Product Dimension
