Introduction

In the era of digitalization and intelligent power management, precise and reliable energy measurement and quality monitoring have become critical requirements across industrial, commercial, and infrastructure sectors. The APM521 Network Power Meter, launched by Acrel Electric Co., Ltd., is a high-performance, multi-functional device designed specifically to meet these demands. Beyond comprehensive electrical parameter measurement, it integrates power quality analysis, event recording, network communication, and flexible expansion capabilities, making it suitable for comprehensive monitoring scenarios of grid power supply quality.

1. Product Overview and Design Philosophy

The APM521 is engineered in strict accordance with IEC international standards. It supports a wide range of functions including full electrical parameter measurement, four-quadrant energy metering, multi-tariff metering, demand monitoring, power quality analysis, and event recording. Its core design philosophy is to provide a high-precision, highly reliable, and easily integrable power monitoring solution, enabling users to achieve real-time insight and intelligent management of their electrical systems.

The meter comes standard with optional features such as DI/DO modules and AO (Analog Output) modules, allowing flexible adaptation to diverse on-site requirements. This ensures seamless integration of full electrical parameter measurement and switch status monitoring. Whether deployed in distribution systems, Energy Management Systems (EMS), or industrial automation scenarios, the APM521 delivers stable and accurate data support.

2. Key Feature Highlights

1. Comprehensive Electrical Parameter MeasurementThe APM521 supports real-time monitoring of basic electrical parameters such as three-phase voltage, current, power, power factor, and frequency. It also offers advanced power quality functions including voltage and current harmonic analysis (2nd to 63rd order), sequence component analysis, and unbalance factor calculation. With a measurement accuracy of up to ±0.2%, it meets the most stringent high-precision monitoring needs.

2. Energy Statistics and Demand ManagementThe meter supports four-quadrant energy metering, phase-specific energy, apparent energy, and multi-tariff energy statistics. It can implement rate calculations for multiple periods such as 尖 (Critical Peak), 峰 (Peak), 平 (Flat), 谷 (Valley), and 深谷 (Deep Valley). Additionally, it features real-time demand and maximum demand recording functions, helping users optimize electricity usage strategies and reduce demand charges.

3. Flexible Event Recording and Alarm MechanismThe APM521 has a built-in storage capacity for 128 DIDO event records and 128 alarm records. It supports various alarm types including electrical parameter over-limits, switch status changes, reverse phase sequence, and harmonic over-limits. Users can set alarm thresholds, delays, and recovery conditions via the interface or communication, enabling early warning and linkage control.

4. Rich Communication and Expansion InterfacesThe meter is equipped with a standard RS485 interface supporting Modbus-RTU and DL/T 645-2007 protocols. It can be expanded with a second RS485 port or Ethernet communication (supporting MODBUS-TCP and FTP protocols), facilitating easy integration into various monitoring systems and cloud platforms. The optional 4-channel digital input, 2-channel digital output, and 2-channel 4-20mA analog output further enhance its on-site control and signal transmission capabilities.

3. Ease of Installation and Operation

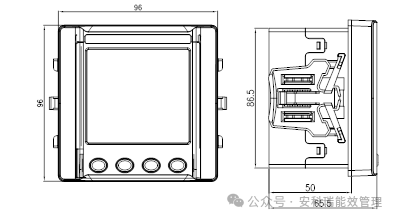

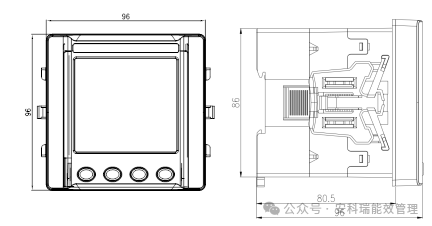

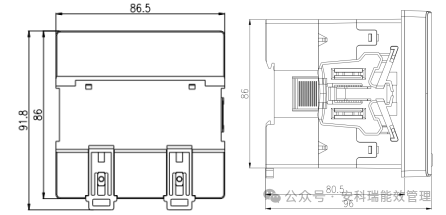

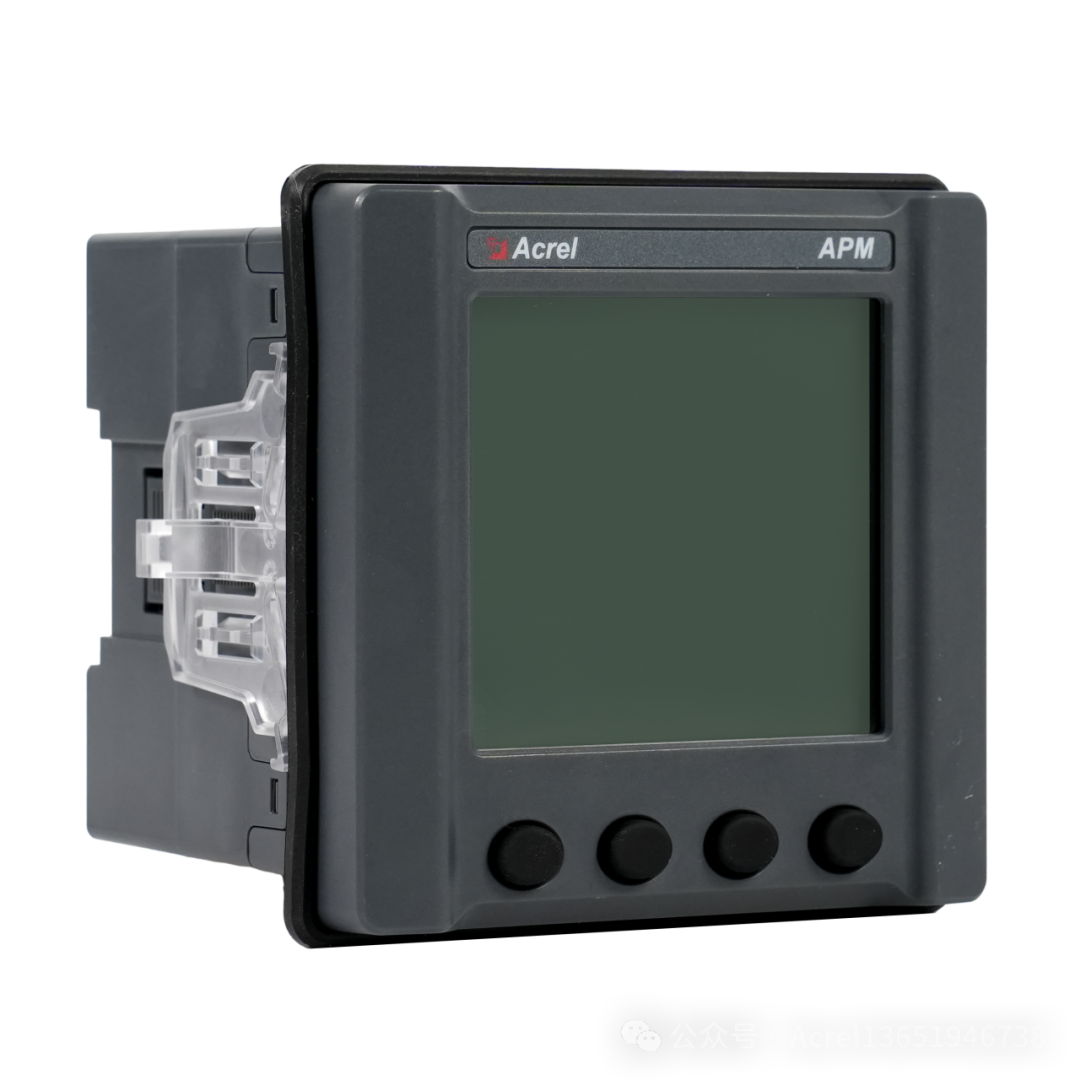

The APM521 offers two installation methods: Flush Mount (96×96 square) and DIN Rail Mount. Its compact structure adapts to various cabinet installation environments. The front panel has an IP54 protection rating, and the rear housing is IP30, providing good dustproof and slight splash-proof capabilities, suitable for indoor dry environments.

The meter features an intuitive Chinese-English bilingual interface supporting key navigation and menu-driven operation. Users can view real-time data, historical records, and event alarms on the clear display, or access the programming interface for parameter configuration, communication setup, and tariff setting. A default password protection mechanism ensures configuration security, while also supporting remote communication configuration and management.

4. Technical Reliability and Safety

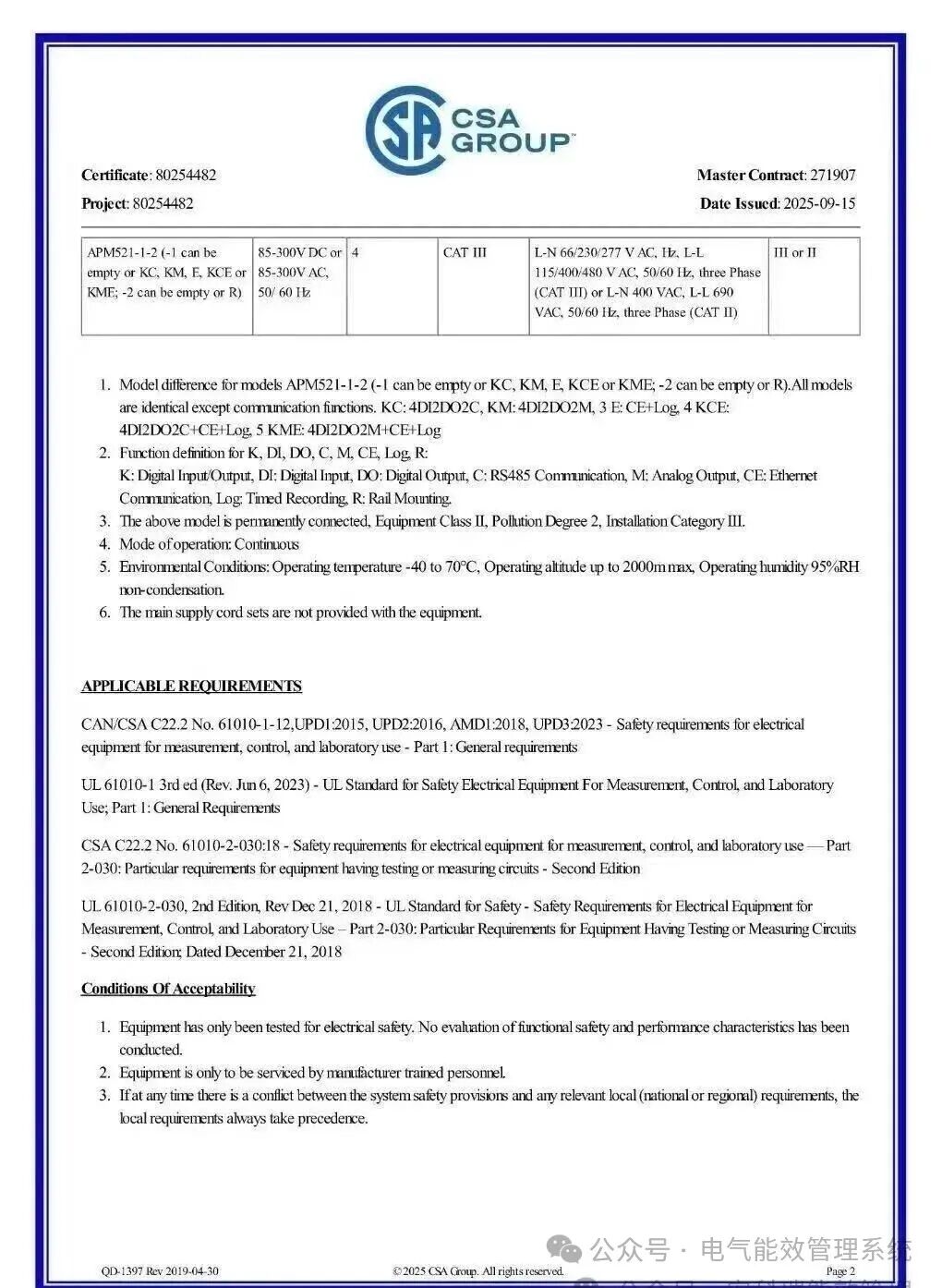

The APM521 is designed with full consideration of electrical safety and environmental adaptability. Its voltage and current inputs feature overload protection, and the auxiliary power supply supports a wide input range of AC/DC 85-300V. The meter complies with multiple certification standards including UL, CE, and CPA, making it suitable for power system environments in different regions.

In terms of electromagnetic compatibility (EMC), the product has passed multiple immunity tests such as electrostatic discharge, electrical fast transient burst, and surge, ensuring stable operation in complex electromagnetic environments. The terminal blocks are made of copper-aluminum material. It is recommended to use copper wires with a rated voltage of 1000V and to connect a 5A fuse at the voltage input terminal to further ensure safety.

5. Typical Applications

The APM521 is suitable for:

• Industrial Distribution Systems: Monitoring and energy management.
• Commercial Buildings: Energy monitoring and energy-saving analysis.
• Critical Infrastructure: Power quality assurance for data centers, hospitals, schools, etc.
• Renewable Energy: Grid-connected monitoring for photovoltaic and energy storage systems.
• Smart Grids: System integration and data acquisition for smart grids and microgrids.

6. Conclusion

With its high-precision measurement, multi-functional integration, strong communication capabilities, and flexible configuration, the APM521 Network Power Meter has become an indispensable intelligent device in modern power monitoring systems. It not only helps users achieve visualization of electricity consumption and refinement of management but also provides reliable technical support for grid safety, energy efficiency improvement, and intelligent operation and maintenance.

As energy management and digital transformation continue to advance, the APM521 will continue to play its core role in monitoring, analysis, and control across various power applications, helping users build a safer, more efficient, and greener electricity environment.
