ATE Series Cable Busbar Contactor Temperature Monitoring Sensors
ATE Series Cable Busbar Contactor Temperature Monitoring Sensors
ATE series wireless temperature sensor was developed according to the technical requirements for wireless temperature measuring devices in the NB/T 42086-2016 standard. It can be installed at any position heat generated in the switchgear. Using wireless data transmission technology, temperature data can be sent to a remote receiver in a real-time manner. The data will be then transmitted to a display or remote monitoring system.
ATE400:
● Power supply:CT sensing
● Widely temperature measuring range: -50℃~+125℃
● Wireless transmit:470MHz
● Wireless transmission distance：150 meters in open area
ATE100M:
●Type:Magnetic
● Power supply:Battery
● Widely temperature measuring range: -50℃~+125℃
● Wireless transmit:470MHz
● Wireless transmission distance：150 meters in open area
ATE200
●Type:Strap
● Power supply:Battery
● Widely temperature measuring range: -50℃~+125℃
● Wireless transmit:470MHz
● Wireless transmission distance：150 meters in open area
ATE200P
●Type:Outdoor strap
● Power supply:Battery
● Widely temperature measuring range: -50℃~+150℃
● Wireless transmit:470MHz
● Wireless transmission distance：150 meters in open area
|
Name |
Shape |
Parameter instruction |
Installation |
|
ATE100M |
|
32.4*32.4*16mm( length*width*high, aperture);-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m. | Magnetic absorption fixation |
|
ATE200 |
|
35*35*17mm, L=330mm ( length*width*high, belt);-50℃~+125℃, Accuracy Class ±1℃, battery powered, life ≥5 years ;470MHz, open distance 150m. |
Strap binding |
|
ATE200P |
 |
35*35*17mm, L=330mm ( length*width*high, belt);-50℃~+125℃, Accuracy Class ±0.5℃, battery powered, life ≥5 years ;470MHz, open distance 150m.IP68 | Outdoor strap binding |
|

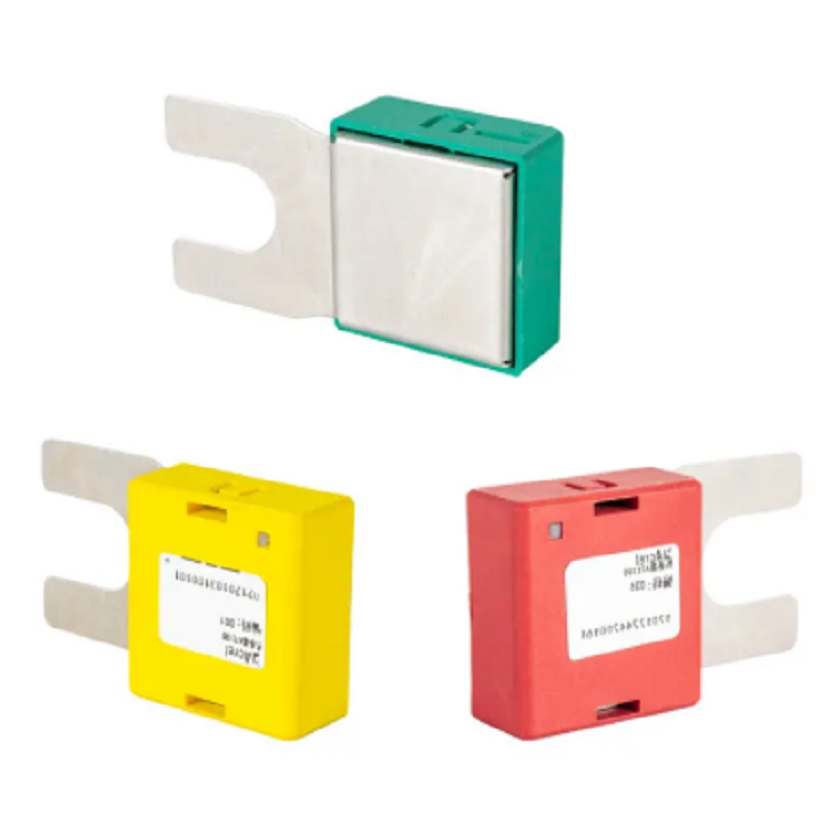

ATE400 |
|
25.82*20.42*12.8mm( length*width*high);-50℃~+125℃, Accuracy class ±1℃, CT induction of electricity powered, starting current ≥5 A;470MHz, open distance 150 m. |
Alloy sheet fixed and Powered |
| Wireless temperature measurement | Item |
Value |
| Wireless frequency | 470MHz | |
| Communication distance | 150m in open area | |
| Sampling frequency | ATE100, ATE100M, ATE200, ATE100P, ATE200P:25sATE400:15s | |
| Transmission frequency | ATE100, ATE100M, ATE200, ATE100P, ATE200P:5minATE400：15s | |
| Power source | CT-powered, starting current>5A | |
| Installation | Alloy chip fixing | |
| Range of temperature | -50AC~125°C | |
| Precision | ATE100, ATE100M, ATE200, ATE400: 士 TCATE100P,ATE200P: 土0.5°C | |
| Application | Joints in high or low voltage switchgears | |
| Service life | ^5 years | |
| Environmental requirement | Operating temperature | -50″C~125″C |
| Relative humidity | W95% | |
| Atmospheric pressure | 86kPa~106kPa |
