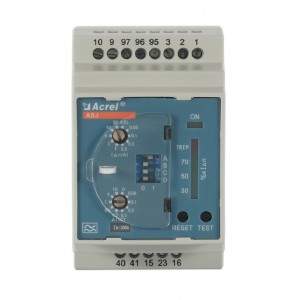

Residual Current Relay ASJ10-LD1A

● A-type residual current measurement

● Current percentage light column display

● Rated residual operating current can be measured

● Limit non-driving time can be set

● Two sets of relay output (settable)

● With local and remote “test” and “reset” functions

Send email to us Download The Manual

Product Detail

Technical parameters

Download

Manual of ASJ Series

General

ASJ Series of action relay of after-current, low-voltage circuit break or low-voltage contactor can be made up for combined after-current production device, which is mainly applied for the TT and TN system distributing circuit with the alternating current 50Hz, the rated voltage 400V or below. ASJ Series of action relay of after-current is applied in the earth fault protection for the electric circuit, so as to prevent the equipment damage and the fire accident of electric equipment caused by the ground fault current, moreover, it also can provide indirect contact protection against the electric shock risk.

Frequency
50Hz±5Hz

Auxiliary power supply
AC110V, AC220V, DC85 ~270V
(permissible error ±10%)

Consumption
≤5W

Installation
DIN rail 35mm

Dimension(L*W*H)
85×54×64mm

Dimension

Wiring

Typical Connection

Installation

Application

Technical Parameter		Indicator
Technical Parameter		AC type	A type
Power supply	Voltage range	AC110V、AC220V （±10%）	AC/DC85~265V
Power supply	Power dissipation	≤5W
Input	Rated residual operating current I_△_n	0.03、0.1、0.3、0.5(A)	0.03、0.05、0.1、0.3、0.5、1、3、5、10、30(A)^{note 3}
	Limit non-driving time △t	0.1、0.5(s)	0、0.06、0.1、0.2、0.3、0.5、0.8、1、4、10(s)ⁿ^{ote 4}
	Rated residual non-operating current I_△_no	50%I_△_n	50%I_△_n
	Performance characteristics	Sinusoidal AC	Sinusoidal AC and pulsating DC
	Frequency	50Hz±5Hz	50Hz±5Hz
	Operating range	-20% ~ -10%I_△_n	-20% ~ -10%I_△_n
Output	Output mode	One is normally open and another is for transformation	One is normally closed or open, and another is for transformation
	Contact capacity	5A 250VAC 5A 30VDC	AL1:8A 250VAC; 5A 30VDC AL2:6A 250VAC; 5A 30VDC
	Reset mode	Local reset or remote reset	Local reset, remote reset or automatic reset
Installation and use environment	Temperature	Run temperature：-20℃ ~ +55℃，Storage temperature：-30℃ ~ +70℃
	Humidity	≤95%RH，no condensation, and no corrosive gas places
	Elevation	≤2000m
	Class of pollution	Grade three
	Installation category	Type Ⅲ
