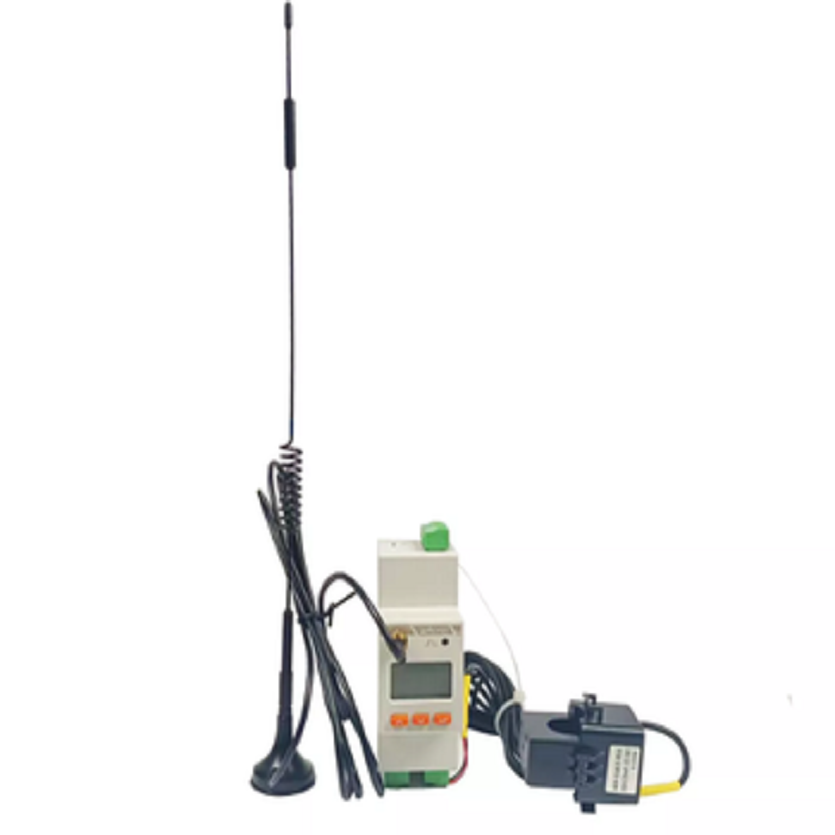

Single Phase Wireless Power Meter,ADW310

Display method: LCD (field type）

Energy metering :Active energy metering (forward, reverse)

Electricity measurement:Voltage, current, power factor, frequency, active power, reactive power, apparent power

Communication:RS485 interface (optional C),470MHz wireless transmission (optional LR),4G wireless transmission (optional 4G),WIFI wireless communication (optional WF)

Send email to us Download The Manual

Product Detail

PARAMETERS

Download

Manual of ADW310

Overview

ADW310 wireless energy meter is mainly used to measure the active energy of low-voltage network. It has the advantages of small size, high precision, rich functions, etc., and has many optional communication methods. It can support RS485 communication, Lora, 4G and other wireless communication methods. The current sampling mode of the transformer is convenient for users to install and use in different occasions. It can be flexibly installed in the distribution box to meet the needs of power metering, operation and maintenance supervision or power monitoring for different areas and different loads.

ADW310 main functions

Dimensions (unit: mm)

Dimensions of supporting transformers

Wiring

Voltage input	Rated voltage	220V
	reference frequency	50Hz
	Power consumption	<0.5VA per phase
Current input	Input Current	AC 20(100)A
	Starting current	1‰Ib(0.5S class)，4‰Ib(1class)
	Power consumption	<1VA per phase
Auxiliary power	Supply voltage	AC 85~265V
Auxiliary power	Power consumption	<2W
Measuring performance	Standards compliant	GB/T17215.322-2008，GB/T17215.321-2008
	Active energy accuracy	Class 1
	temperature accuracy	±2℃
