Photovoltaic system solutions
Nowadays, grid companies usually require photovoltaic grid-connected systems to be irreversible , that is, the electricity generated by photovoltaic grid-connected systems is consumed by local loads, and excess electricity is not allowed to supply to the grid. The system can regulate power generation in order to prevent the photovoltaic grid-connected system from generating reverse power.
Solution for PV anti-backflow
Solution for PV DC coupled energy storage
Solution for photovoltaic AC coupled energy storage
Anti-reflux
|
Application |
Model |
Certificate |
Product |
|
Single phase |
AGF-AE-S |
ANSI C12 |
|
|
ACR10R-D10TE |
CE |
|
|
|
Two phase |
AGF-AE-D |
ANSI C12 UL 1741 |
|
|
Three phase |
ACR10R-D10TE4 |
CE |
 |
Functions
Measure power generation and the use of electricity,
Data refresh rate: 250ms,
Split core CT, 300A current,
Communication: RS485 and grid-connected inverter or energy storage inverter
AGF-AE-D

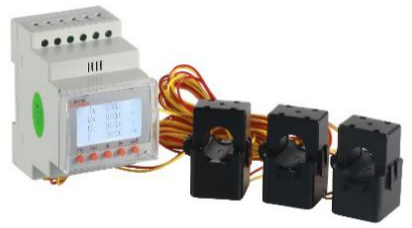

ACR10R
DJSF1352-RN DC Energy Meter
Accuracy: 1, voltage output: ±12V
Communication: infrared and RS485 communication, Modbus-RTU and 645 protocol
DIN rail installation
Support hall sensor or shunt input
