Residual Current Operated Relay

Model

Installation

Main Function

ASJ10-LD1C

DIN35mm

Warning at 50% I△n and alarm at I△n;

Adjustable I△n from 0.03 to 0.5A;

Adjustable time delay from 0.1 to 0.5s;

One warning relay, one alarm relay;

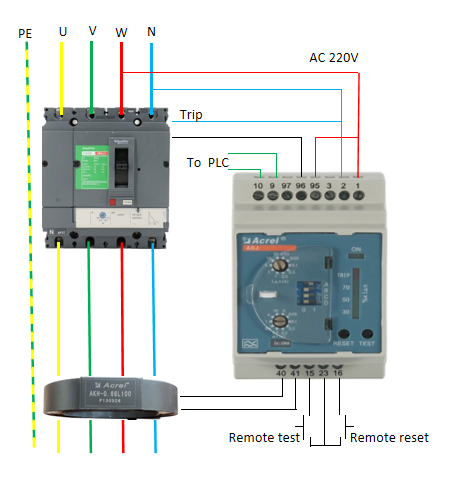

Local and remote “TEST”, “RESET”.

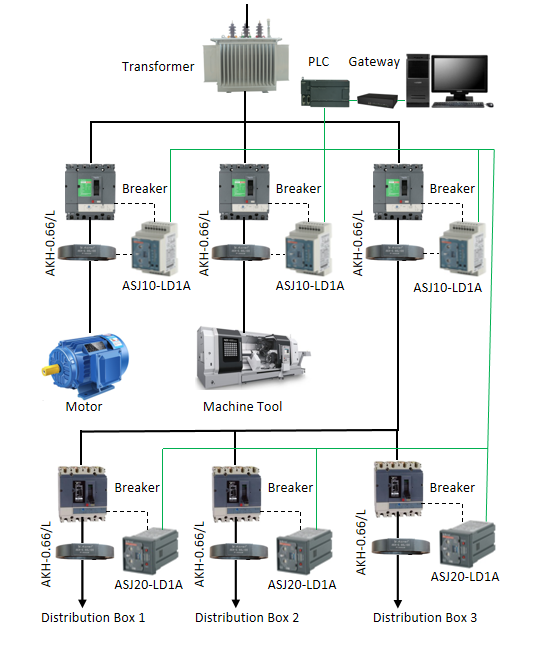

ASJ10-LD1A

LED bar graph display leakage currents;

 Adjustment of I∆n from 0.03 to 30 A;

Adjustment of time delay 0 to 10 s;

2 configurable relays;

Local and remote “TEST”, “RESET”

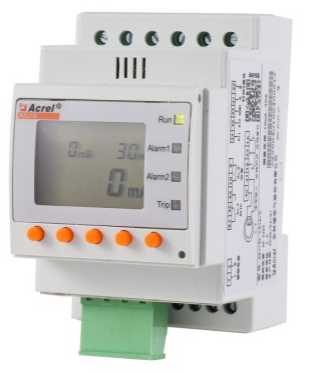

ASJ10L- LD1A

Monitoring of Type A leakage current;

Adjustment of I∆n from 0.03 to 30 A;

Adjustment of time delay 0 to 10 s;

2 configurable relays;

Settable toroid disconnect alarm;

Adjustment of pre-alarm value;

Adjustment of auto rest value;

RS485 Optional function;

Local and remote “TEST”, “RESET”;

SOE fault record

ASJ20-LD1C

Monitoring of Type AC leakage current;

Warning at 50% I△n and alarm at I△n;

Adjustment of I∆n from 0.03 to 0.5 A;

Adjustable time delay from 0.1 to 0.5s;

One warning relay, one alarm relay;

Local and remote “TEST”, “RESET”

ASJ20-LD1C

LED bargraph display leakage currents;

Adjustment of I∆n from 0.03 to 30 A;

Adjustment off time delay 0 to 10 s;

2 configurable relays;

Local and remote “TEST”, “RESET”
