AMC16-DETT DC energy meter for base stations
AMC16-DETT DC energy meter for base stations

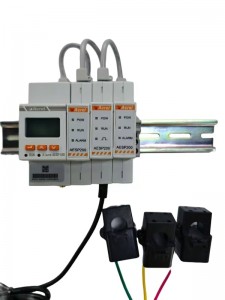

Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure 6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software. have the functions of telemetering,teleindication,teleadjusting, metering at real time, energy quality abnormal alarm, data storage and processing, data interaction. This meter can measure DC power consumption of three operators, providing detail datas for base station.
Communication
Single channel RS485 communication protocol
Standard or customized
Rated U and I
Total 200A/5V
Accuracy
1%In≤I≤10%In error±2.5%;I>10%In error±2%
Voltage range
-40V~-60VDC
Power consumption
≤2W( no hall power supply output)
Network
| Technical parameter | Index | ||
|
input |
DC rated voltage | 1 channel: -48VDC | |
| DC current | 6 channels hall sensors: total 200A/5V, China Telecom, China Mobile, China Unicom and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V. | ||
| Commercial monitoring | power | 1 channel: 0-5VDC | |
| Overload capacity | Voltage:1.2times continued,2 times continued 1s;Current: 1.2 times continued,10 times continued 1s. | ||
| Accuracy (superposition hall sensors) | 1%In≤I≤10%In error±2.5%; I>10%In error±2% | ||
| Measurement resolution | Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kwh | ||
|
functions |
Basic function | Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication | |
|
Metering function |
Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts.Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change | ||
| Alarm function | DC voltage output low alarm,DC voltage output high alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm, AC input power failure alarm | ||
